The Timer Calibrator TFC-1901 is a precision instrument. It is Primarily designed to generate the accurate time intervals for calibrating time-related devices, ensuring traceability to National/International standards. Built with a internal 10MHz OCXO/TCXO time base Oscillator or External input Frequency from standard Lab source and also with Non contact RPM calibrating source all in a single unit — with potential-free MOSFET trigger output connector terminal to support an external Multi-stopwatch fixture (Model : TFC-19F) — to eliminate manual START/STOP timing error and 10MHz OCXO/TCXO Reference frequency output is provided on rear side terminal of Instrument. Technical Specifications: Model: TFC 1901 Display: 4.3” Multi-colour TFT touchscreen display. Range: Digital Electronic Stopwatch: 100 ms to 86400.00000 s; Mechanical Stopwatch & Electronic Industrial Timer: 1 s to 86400.00000 s. Resolution: 10 µs to 1 s (selectable: 0.00001 / 0.0001 / 0.001 / 0.01 / 0.1 / 1 s). Display Format: Time in HH:MM:SS.fraction. Mode 1 – Precision Stopwatch / Timer: High-resolution elapsed-time counter driven directly from the Precision internal oscillator reference, supporting free-run stopwatch and preset auto-stop timer operation with Master and DUC triggering. Time Base: Directly referenced to the internal 10 MHz OCXO/TCXO. Auto-Stop: Auto-stop at user-set target time. Master vs. Calibration Mode: Master: touch control, outputs enabled, Auto-Stop available, Up/Down count; Calibration: external-input control, outputs disabled, input detection enabled, no Auto-Stop. Accuracy: Digital Electronic Stopwatch – OCXO: ±(5.02 × 10⁻⁸ × Te + 2 ms); TCXO: ±(1.003 × 10⁻⁶ × Te + 2 ms); Mechanical Stopwatch & Electronic Industrial Timer – OCXO: ±(5.02 × 10⁻⁸ × Te + 5 ms); TCXO: ±(1.003 × 10⁻⁶ × Te + 5 ms), where Te = elapsed time. Trigger I/O: Master generates START/STOP/RESET output pulses (30 µs) and continuous output; Calibration accepts external START/STOP/RESET, pulse mode and selectable continuous mode. Mode 2 – Frequency Totalizer: Precision pulse totalizer that counts input events entirely in hardware, converts the count to elapsed time at the selected resolution, and simultaneously measures live input frequency referenced to the OCXO/TCXO. Run Time: 24 hours continuous run at 100 kHz without rollover (1.728 × 10¹⁰ pulses). Input / Counting: Dedicated pulse-count input with standard logic-level pulse train and fully hardware-based counting. Frequency Measurement: Measured against OCXO/TCXO reference; range from 1 Hz to 100 kHz. Resolution / Frequency Map: 0.00001 s ↔ 100 kHz, 0.0001 s ↔ 10 kHz, 0.001 s ↔ 1 kHz, 0.01 s ↔ 100 Hz, 0.1 s ↔ 10 Hz, 1 s ↔ 1 Hz. Mode 3 – RPM Generator: Front-panel LED blinks at 50% duty cycle, matching the RPM value for visual RPM checking using a stroboscope or similar method. Range for Non-contact: 0 to 204,000 RPM. Output / Conversion: Front-panel LED output, 50% duty-cycle square wave; f (Hz) = RPM / 60.

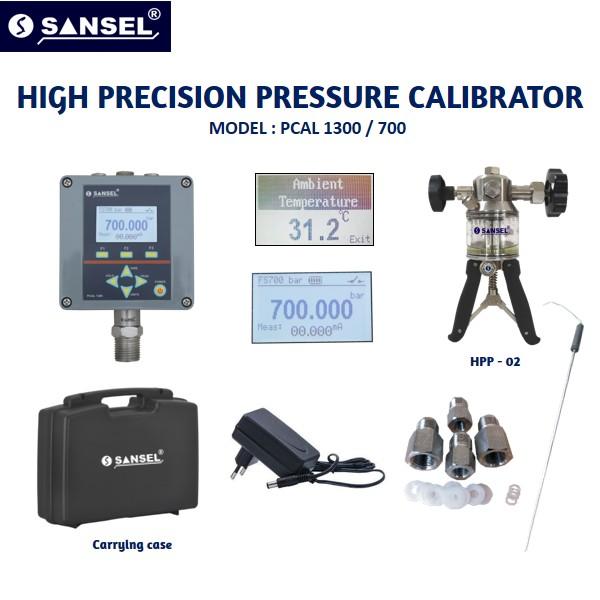

Model: Pcal 1300 / 700 bar Range (bar): 0 to 700 bar Pressure media: Oil & Water Pressure pump: HPP – 02 Display: 128 x 64 COG Graphic LCD with White LED Back light Instrument port (at pump): 3/8“ BSP Female Test Port (at pump): ¼” BSP Female Instrument Port: 3/8” BSP Male Pump dimension in mm (Appox.): 240 x 185 x 95 mm (H x W x D) Resolution (bar): 6 digit user selectable Instrument dimension: 100 x 100 x 55 (W x H x D) mm Instrument Weight: 400gms (Approx.) Stability time: 1 to 2 mins Accuracy: ± 0.05%FS Pressure units * (selectable): bar, mbar, MPa, kPa, Pa, PSI, kg/cm², inHg, cmHg, mmHg, mH₂O, ftH₂O, inH₂O, cmH₂O, mmH₂O Pressure Zero: One touch zero provided on front key Pressure Peak: Maximum & minimum with user reset option Pressure overflow: FS X 2 (Max.) Pressure burst: FS X 3 (Max.) Temp.Measure: RTD -PT 100 (2,3,4, wire selectable) Temp. Range: -199.999 to 850.000 mA Measure: 0-24 mA (scalable) Display scale: -99999 to 99999 counts (for mA measure input) Switch test: Provided Display Hold: One touch hold provided on front key Power Supply: 9V DC ±5% / 600 mAh Rechargeable battery with battery life 20 hours without backlight (or) 9V DC adapter / 230V AC supply operated Pump Weight (Approx.): 1.8 kg. PC Interface(optional): RS-485(2 wire) (Note : connect to PC using USB to RS 485 convertor supplied along with PC software) PC Software(optional): Windows-based semi-automatic calibration software (Optional)

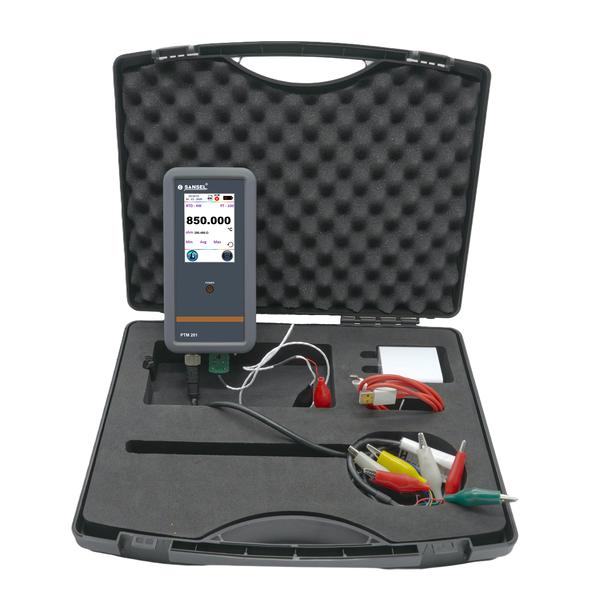

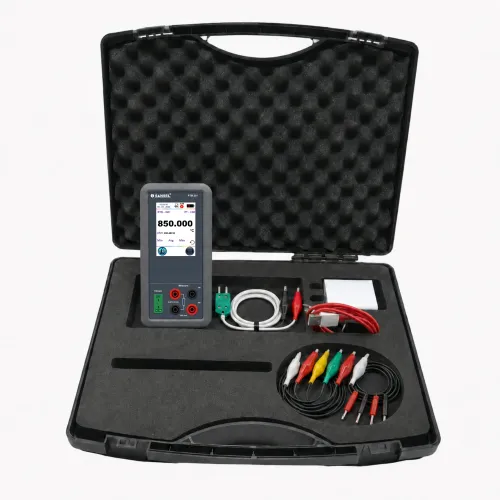

The Precision Portable Thermometer (PTM-201) is a state-of-the-art handheld measurement device designed for professionals who demand exceptional accuracy, versatility, and reliability. By supporting a wide range of input types—including RTD, Thermocouple, mA, Voltage, Resistance, and mV—this instrument is engineered to adapt to a variety of field and laboratory applications. The PTM-201’s intuitive 2.8” True Colour TFT touchscreen ensures a user-friendly experience, while comprehensive data logging features and a large 16 GB memory enable extensive record-keeping for analysis and compliance. With robust construction, an integrated rechargeable battery, and advanced calibration and alarm capabilities, the PTM-201 is the ideal partner for achieving precise and traceable measurements in demanding environments. Temperature Inputs: RTD, TC Wide Temperature Measurement Ranges: -200 to + 1800 °C Temperature Resolution: 0.01/0.001* °C (*As per selected Input type) Analog Inputs: Resistance, Current, Voltage Wide Analog Measurement Ranges: 0 to 4000 Ohms, 0 to 2omA DC, 0 to 75 mV DC, 0 to 30V DC Analog Measurement Resolution: 0.01 Ohms, 0.001 mA/mV/V Display: 2.8” True Colour TFT touchscreen Operating Conditions: -10 to 60 °C; 0 to 100% RH (non-condensing) Storage Conditions: -10 to 45 °C; 10 to 90% RH Data Recording: Huge Logging Memory upto 16 GB Data Logging Interval: User-selectable from 1 second to 24 hours Data Download: Via USB Type-C to PC software (Sansel-Soft-01) Calibration: Multipoint calibration feature available Alarms: Audible and visible; user-settable high and low thresholds Battery: Integrated 3.7V / 10,000 mAh rechargeable Li-ion Charging Port: USB Type-C Adjustable Settings: Backlight timing, brightness, touch sound Housing: ABS with anti-slip grip silicon cover Protection Class: IP40 Dimensions: 35 x 80 x 165 mm (L x W x H) Weight: Approximately 560 g
